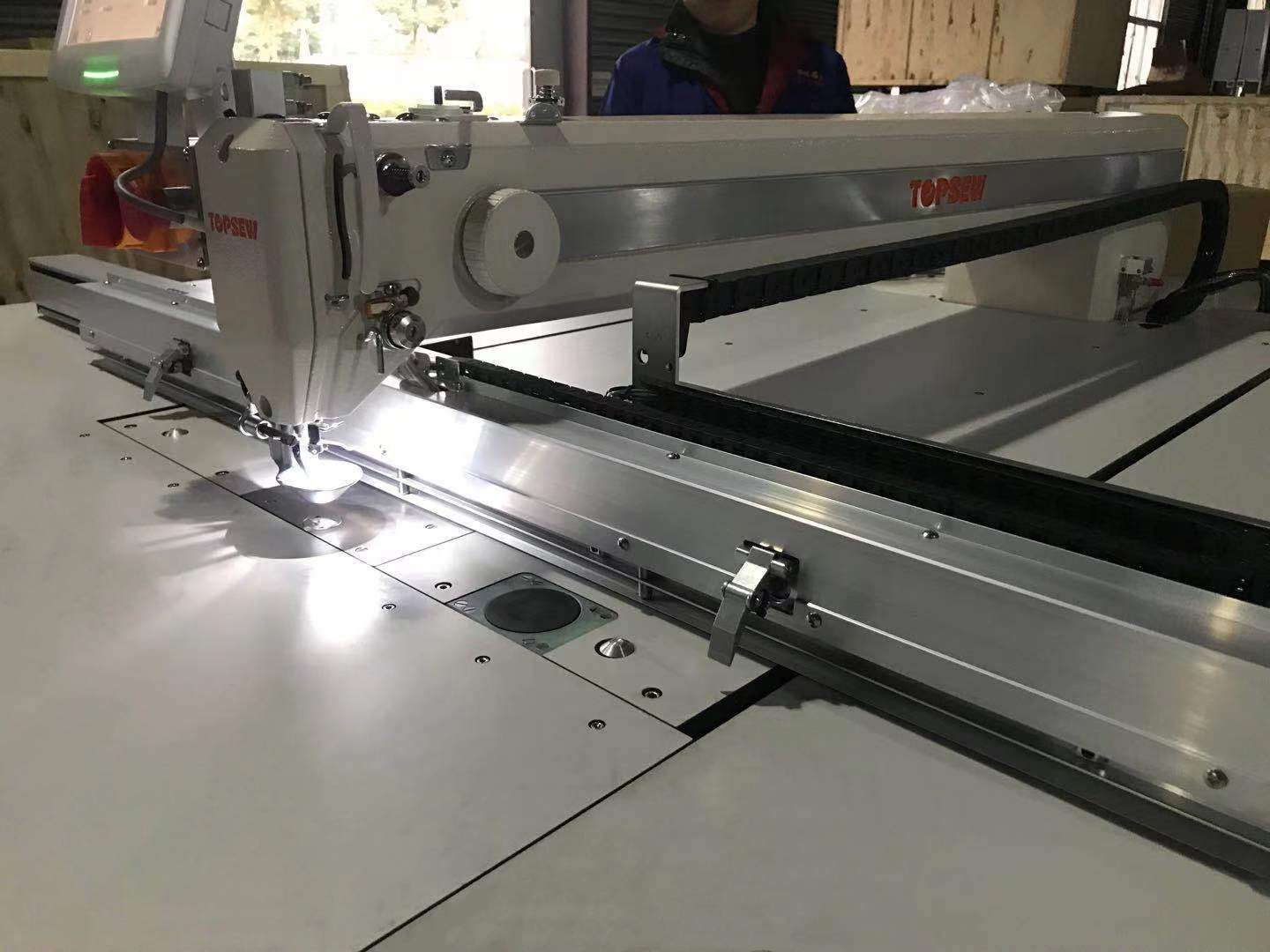

Nlereanya Akwa Akwa nke China nke nwere ụkpụrụ nnukwu mpaghara akpaka TS-13090

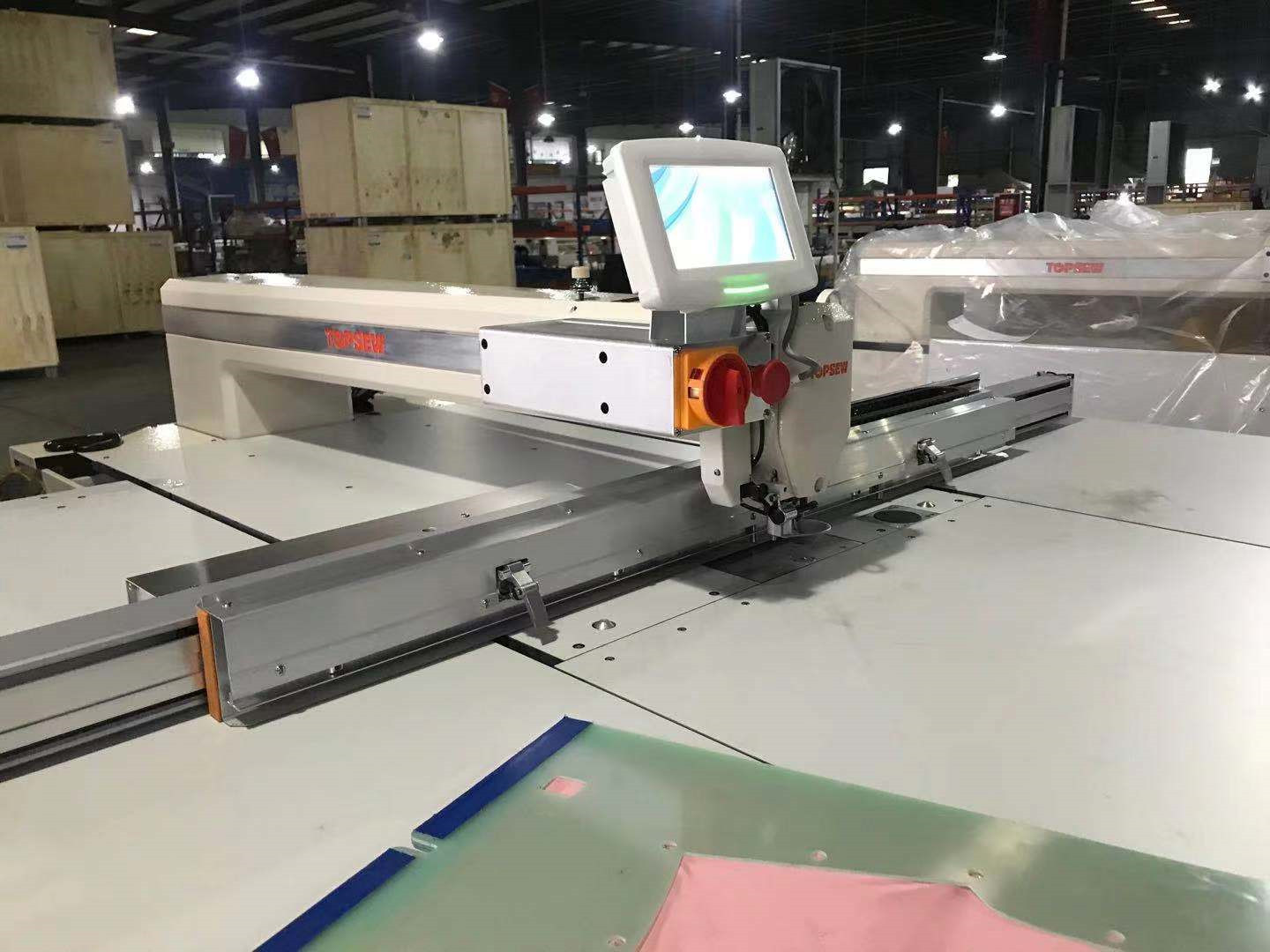

Nlereanya Nhazi Mpaghara Ukwuu Akpaka TS-13090 Foto A Na-egosipụta

Nlereanya Akwa Akụkụ Ukwuu Akpaka TS-13090

Nkọwa Dị Mkpirikpi:

Mpaghara buru ibuigwe ịkwa akwa ihe nlereanya ụkpụrụbụ igwe template akpaka ọhụrụ, nke a na-ejikarị eme akwa akwa dị ala, ihe mkpuchi uwe, olu olu, akpa na akwa akwa ndị ọzọ buru ibu ma ọ bụ obere akwa akwa.

Igwe akwa akwa ihe nlereanya buru ibuTS-13090 abụghị naanị na ọ nwere ọrụ nke igwe eletrọniki nkịtị, kamakwa ọ nwere ọrụ nke ihe mkpuchi ụkwụ mpụta, mkpịsị eletriki, njirimara akpaka mmemme, ngwaọrụ mkpakọ akpaka nke ihe nlereanya, nchekwa nrụgide dị ala, wdg. Oke akwa akwa kachasị bụ 1300mm na ntụziaka X na 900mm na ntụziaka Y.

Zitere anyị ozi-e Budata ya dị ka PDF

Nkọwa Ngwaahịa

Akara Ngwaahịa

Vidiyo

Uru

1, Theigwe ịkwa akwa ihe nlereanya ụkpụrụọsọ ya bụ 3000rpm, ọ dị mfe ma dịkwa irè.

2, Theigwe ịkwa akwa ihe nlereanya ụkpụrụdraịva ejiri aka rụọ ya nwere mkpanaka skru abụọ na servo abụọ.

3, Theigwe ịkwa akwa ihe nlereanya ụkpụrụusoro nhazi dị mfe nke nwere ike ịgbanwe agbanwe nke nwere ike ịrụ ọrụ n'etiti nrụgide ụkwụ.

4, Theigwe ịkwa akwa ihe nlereanya ụkpụrụnwere sistemụ inye mmanụ akpaka. Enwere ike ịgbanwe mmanụ ahụ na akpaghị aka site na ọsọ ịkwa akwa dị iche iche.

5, Theigwe ịkwa akwa ihe nlereanya ụkpụrụỌ na-eji modulu nke ihe nha anya laser, ọ nwere ike ikpebi ma eriri bobbin ahụ ejirila.

6, Theigwe ịkwa akwa ihe nlereanya ụkpụrụejiri ike dị elu nke 8NM DC SERVO MOTOR rụọ ọrụ nke ọma.

7, Theigwe ịkwa akwa ihe nlereanya ụkpụrụNgwaọrụ akpaka nke e ji eriri eme ihe, ihe mmetụta nke na-agbaji eriri.

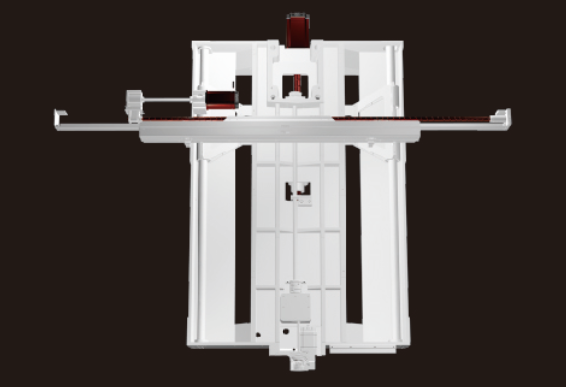

Jiri mkpara skru abụọ na ọrụ abụọ rụọ ụgbọala

Iheigwe ịkwa akwa ihe nlereanya ụkpụrụejiri usoro njikwa moto servo DC dị ala dị elu. Ma e jiri ya tụnyere moto stepper na sistemu moto AC servo dị elu,igwe ịkwa akwa ihe nlereanya ụkpụrụna-echekwa ike ma na-anabata gburugburu ebe obibi karịa, ọrụ ahụ na-aga n'ihu ma dịkwa mfe nghọta, mmegharị ahụ na-aga ngwa ngwa.igwe ịkwa akwa ihe nlereanya ụkpụrụejiri usoro servo draịva abụọ nke nwere skru x na y-axis rụọ ya, nke nwere ezigbo nkenke, ọsọ dị elu, obere mkpọtụ na obere mkpọtụ.

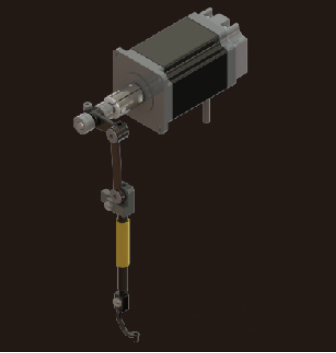

Usoro Ịkwọ Ụkwụ nke Nwere Ike Ịgbanwe Mgbanwe

Iheigwe ịkwa akwa ihe nlereanya ụkpụrụnwere usoro nhazi dị mfe nke a na-agbanwe agbanwe nke nwere ike ịgbanwe agbanwe, nke nwere ike ibelata ọnụ ahịa mmezi nke ọma ma gbochie nku ịgba ọsọ mgbe a na-akwa ákwà mkpuchi.igwe ịkwa akwa ihe nlereanya ụkpụrụnwere ike ịgbanwe elu nke ụkwụ nrụgide dị n'etiti dịka ọkpụrụkpụ nke ihe ahụ si dị maka mmetụta nhata na-anata eriri ahụ.

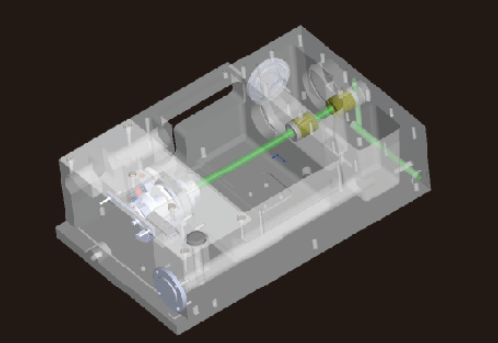

Sistemụ Ntinye Mmanụ Na-akpaghị Aka

Enwere ike ịgbanwe mmanụ ahụ na akpaghị aka site na ọsọ ịkwa akwa dị iche iche.

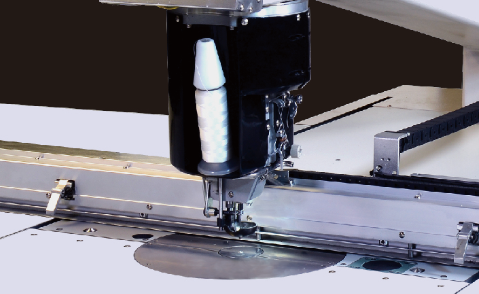

Ntụgharị isi igwe nke ogo 360

Igwe akwa akwa ihe nlereanya nke na-agbanwe agbanweenwere ike ịtụgharị ya na ogo 360. Mee ihe achọrọ maka ịkpa akwa zuru oke.

Nkọwapụta

TS-13090	Nlereanya igwe ịkwa akwa	Nko	nko abụọ
TS-13090-R	Igwe akwa akwa na-atụgharị ihe nlereanya	Ụdị Ịkwa Akwa	Mkpọchi Mkpọchi Otu Agịga
Ọsọ kachasị	3000RPM	Ihe nhicha eriri	Ọkọlọtọ
Ọsọ ịkwa akwa kachasị elu	9m/nkeji	Ihe eji ewepụta eriri	Ọkọlọtọ
Ọsọ kachasị elu na-agagharị	50m/min	Ngwaọrụ eri eletrọniki-ogige	Ọkọlọtọ
Ebe ịkwa akwa kachasị	130cm × 90cm	Ihe mmetụta njikọ eriri	Ọkọlọtọ
Ngwaọrụ Nri	Nri na-akwụsị akwụsị (Draịvụ moto Pulse)	Mgbasa ozi nchekwa data	Ebe nchekwa dị n'ime 128Mb, USB 2.0
Ogologo ịkwa akwa	0.05-12.7 mm	mmemme onye ọrụ	200
Ụdị agịga	DPx5 7-12#	mmemme okirikiri	9
Nchekwa Ụkpụrụ	Ụkpụrụ kachasị.999	Isi moto	Moto 750W AC Servo
Ụdị draịva ụkwụ nke na-eji ihe ntinye aka eme ihe	ikuku oyi	ibu	Ngụkọta 520Kg 570Kg
Ọnụọgụ ebuli ụkwụ nke ihe ntinye aka	Oke kachasị.15mm	Nha ngwugwu	2500mm × 1100mm × 1330mm
Ọnụọgụ ebuli ụkwụ nke onye na-agbanye ihe n'etiti	20mm	Nrụgide ikuku/oriri	0.5Mpa 2.5L/min
Ntugharị ụkwụ nke onye na-agbanye aka n'etiti	0.2-8.0mm	oghere ala	1900mm x 2270mm
Ụdị mkpachapụ ihe nlereanya	Mkpọchi ikuku na-akpọnwụ	Ịnye ọkụ	Otu usoro 220V 700VA
